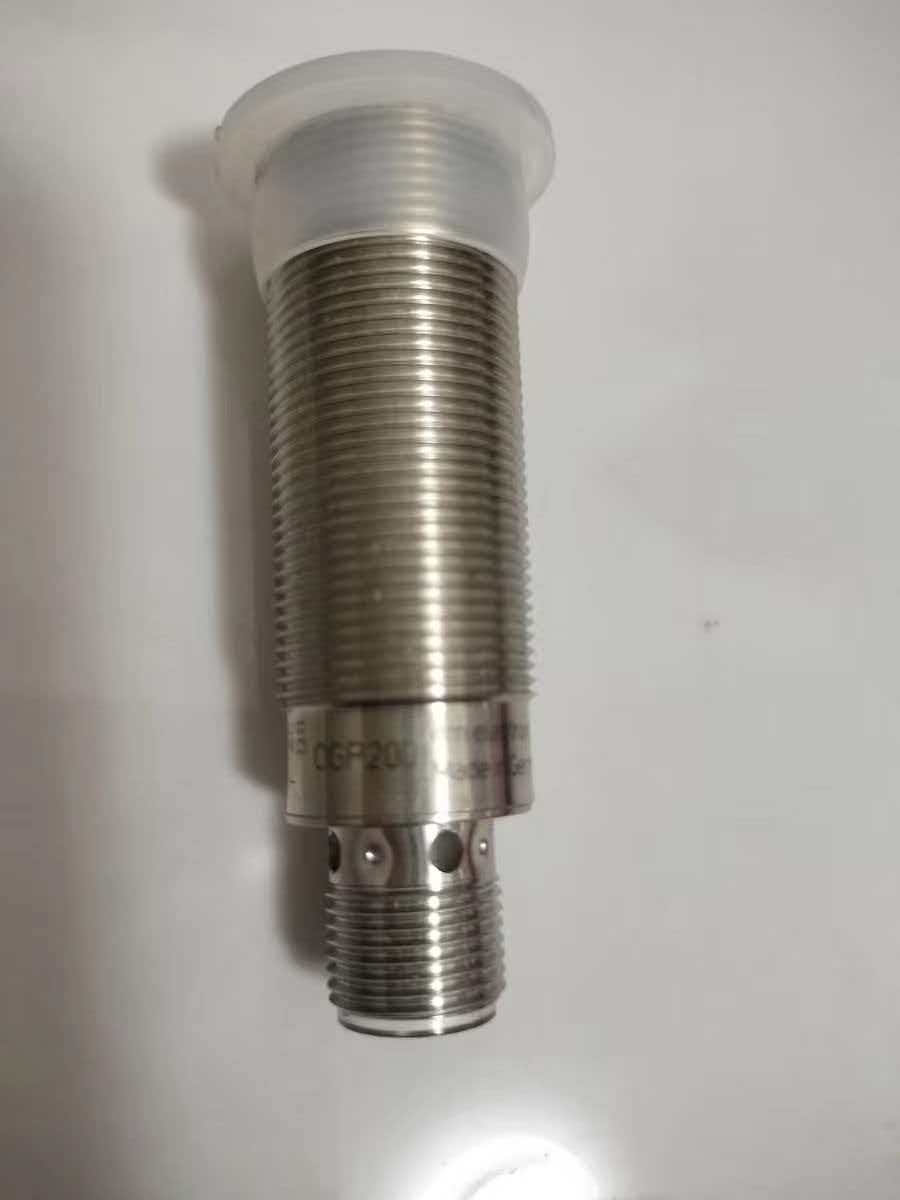

OGP200 IFM

  • OGP200 IFM
  • OGP200 IFM
Lugar de origen Alemania
Nombre de la marca IFM
Número de modelo OGP200
Cantidad de orden mínima 1
Precio INQUIRY

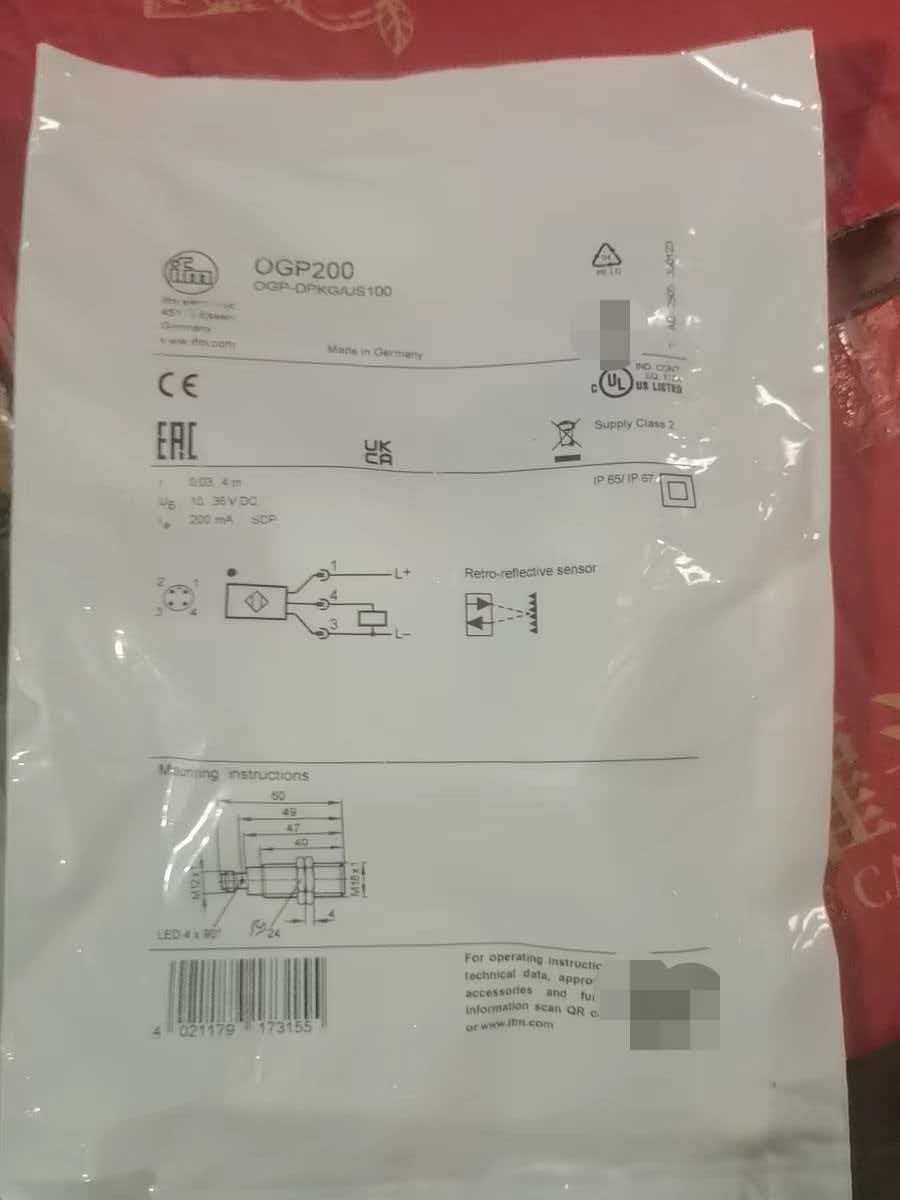

Detalles de empaquetado Original
Tiempo de entrega En stock/1-3days
Condiciones de pago T/T
Capacidad de la fuente 99+
Datos del producto
Tipo de producto Sensor fotoeléctrico retrorreflectante IFM OGP200 Marca Electrónica IFM
Número de pieza OGP-DPKG/US100 Código de orden OGP200
Tipo de sensor Retrorreflectante (con filtro de polarización) Fuente de luz luz roja de 624 nm
Principio de detección Detección óptica sin contacto mediante reflector prismático Voltaje de funcionamiento 10...36 VCC
Consumo actual 15 mA peso 18,14 g (0,04 libras)
Deja un mensaje
Descripción de producto

### Product Overview The IFM OGP200 is a high-performance retro-reflective photoelectric sensor designed for reliable object detection in industrial automation environments. Engineered with precision optics and robust construction, this sensor delivers consistent performance across diverse applications, from material handling to traffic management. Its non-contact sensing principle eliminates wear and tear, making it ideal for harsh operating conditions where direct contact is impractical{insert_element_0_}.

Core Features

  • Retro-Reflective Technology: Utilizes a prismatic reflector (Ø 80 E20005) for detection ranges of 0.03 to 4 meters, ensuring versatile coverage for small and large objects alike14.
  • Optical Design: 624nm red light source with integrated polarization filter, enabling stable detection of shiny or reflective surfaces while minimizing ambient light interference17.
  • High-Speed Response: 1000Hz switching frequency supports fast-moving target detection in high-throughput automation lines14.
  • Robust Construction: M18 x 1 threaded stainless steel (1.4404/316L) housing with PMMA lens, rated IP67 for dust and water resistance in demanding industrial settings47.

Technical Specifications

Parameter Details
Operating Voltage 10...36 V DC
Current Consumption 15 mA
Output Configuration PNP, Dark-On (dark operate) mode
Maximum Output Current 200 mA DC
Output Voltage Drop ≤ 2.5 V DC
Protection Features Reverse polarity protection, pulsed short-circuit protection, overload protection
Ambient Temperature Range -25...60 °C
Connection M12 connector (A-coded)
Housing Dimensions M18 x 1 / L = 60 mm
Compliance RoHS, EN 60947-5-2
Weight 0.04 lbs (18.14 g)

Key Applications

The OGP200 excels in multiple industrial scenarios, including:
  • Gate Control Systems: Detects vehicles/pedestrians for automatic gate operation2.
  • Traffic Management: Monitors vehicle presence at intersections to optimize signal timing2.
  • Conveyor & Material Handling: Ensures reliable box, pallet, or component detection for flow control58.
  • Packaging Machinery: Identifies product presence, lid detection, and color-independent target sensing5.
  • Automotive Assembly: Detects diverse components (painted bodies, seats, tires) with consistent performance across surface types5.
  • Food & Beverage Industry: Withstands washdown environments while detecting metal hooks and packaging components5.

Installation & Durability

  • Versatile Mounting: Threaded housing with two lock nuts allows easy installation on walls, ceilings, or conveyor frames24.
  • Low Maintenance: Rugged design and polarization filter technology reduce calibration needs and ensure long-term stability.
  • Interference Immunity: Advanced optical filtering prevents false triggers from sunlight, machine lighting, or reflective materials.
